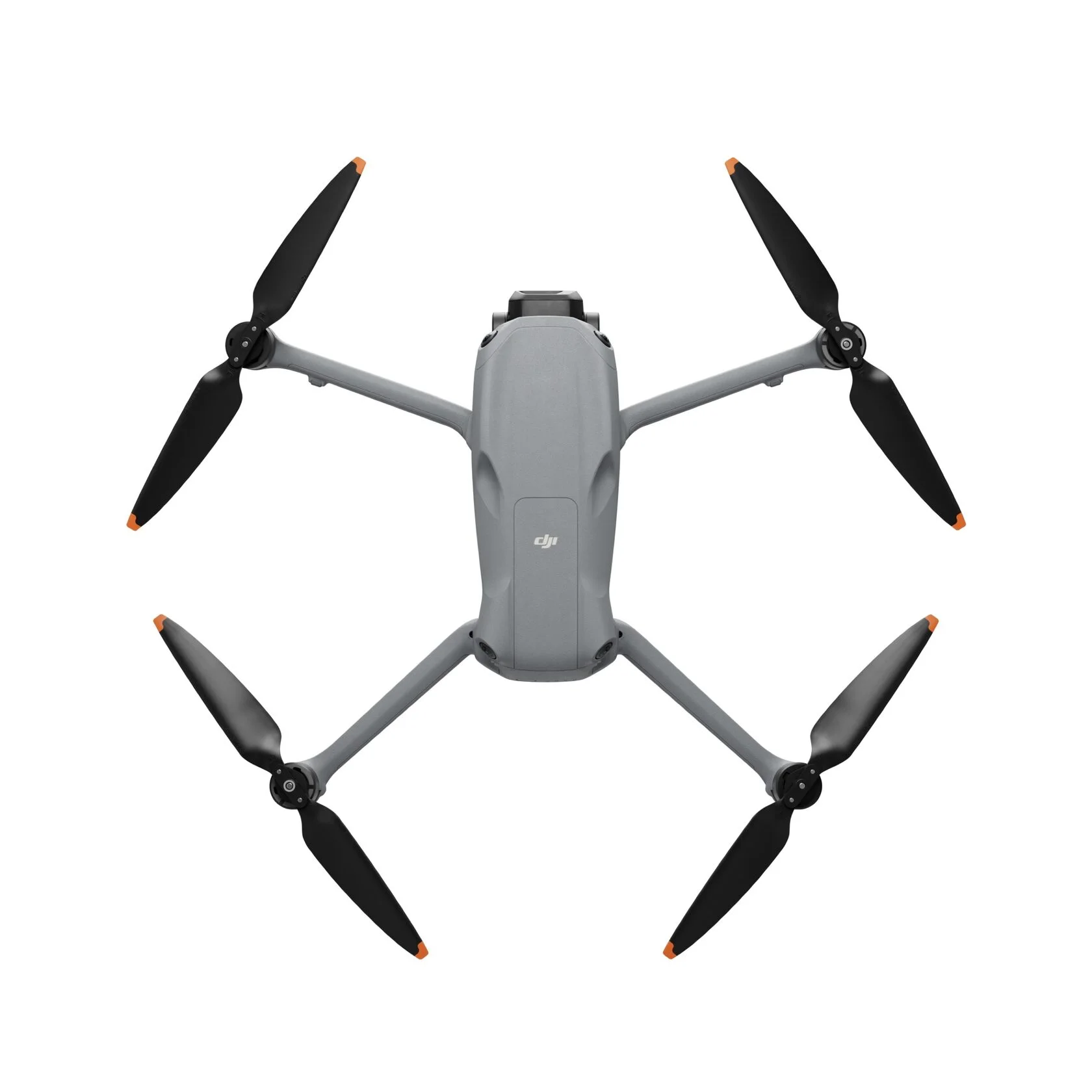

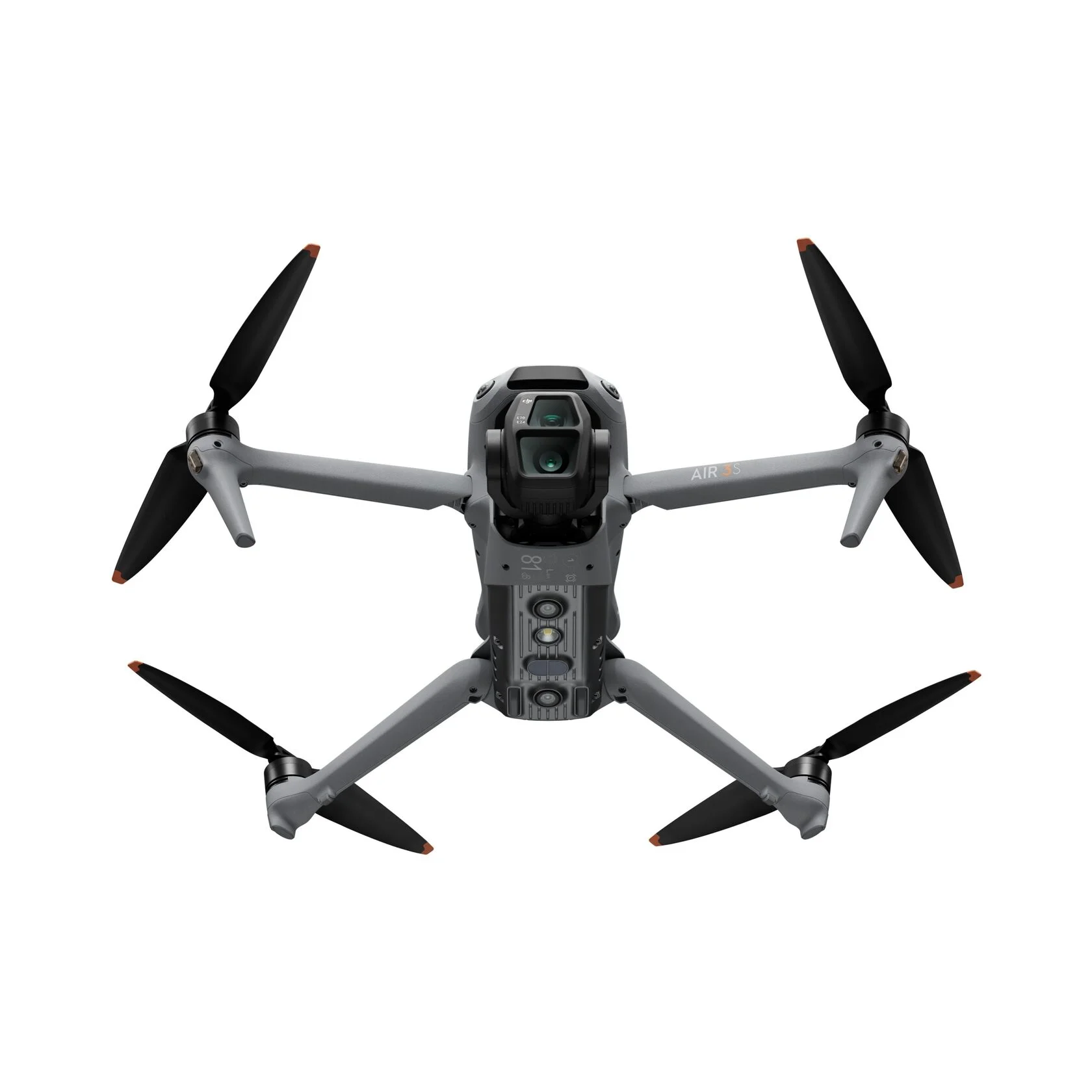

DJI Air 3S

DJI
Flight time
up to 45 min
Link FCC/CE
up to 20 / 10 km
Speed
up to 21 m/s

Price on request · Available to order

Description

Air 3S combines a wide-angle camera and a medium telephoto camera for aerial imaging. The operator chooses the perspective for the subject and accounts for obstacle sensing when planning movement. Speed specifications distinguish still air, tailwind and regional restrictions.

Specifications

Aircraft and installed systems

Max flight time
45 minDJI controlled wind-tunnel test equivalent to no wind and sea level; constant 32.4 kph, Brake, Photo mode, to forced landing from battery depletion
Transmission range
20 / 10 kmFCC / CE; unobstructed, interference-free; one-way non-return flight
Max horizontal speed
21 m/sSport mode, equivalent no wind and sea level; Air 3S outside EU
Takeoff weight
724 gStandard battery; not Cine/Plus
Unfolded dimensions
266.11 × 325.47 × 106 mmL×W×H; without propellers
Folded dimensions
214.19 × 100.63 × 89.17 mmL×W×H; without propellers
Max wind resistance
12 m/s
Operating temperature
-10 to 40 °C
Battery capacity
4276 mAhStandard battery
Nominal battery voltage
14.6 VStandard battery
Battery energy
62.5 WhStandard battery
GNSS
GPS + Galileo + BeiDou
Wide-angle camera
1-inch CMOS; 50 MP
Medium tele camera
1/1.3-inch CMOS; 48 MP
Internal storage
42 GB
Speed with tailwind
27 m/s6 m/s tailwind; equivalent sea level; Sport mode
Speed in EU
19 m/sEU regional limit
Battery type
Li-ion 4S
Charging time
80 / 60 min65 W portable charger / 100 W USB-C adapter and hub
Sensing type
Omnidirectional binocular vision + forward LiDAR + infrared sensor
